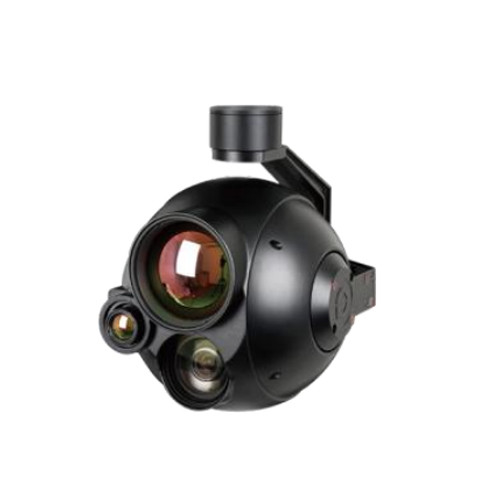

30x EO + IR Thermal Triple-Sensor Gimbal Drone Camera 2.13MP

Name: 30x EO + IR Thermal Triple-Sensor Gimbal Drone Camera 2.13MP
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: Q30TIR-1352
Price: 1,030.00 USD
Availability: InStock

Product Details

Brand Name: GS

Model Number: Q30TIR-1352

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: 127.7*172.9*186.7mm

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Triple-Sensor  gimbal drone camera, Triple-Sensor drone com gimbal, Gimbal Drone Camera 2.13MP


Imager Sensor:	1/2.8" SONY CMOS	Lens:	30x Optical Zoom, F=4.3~129mm
Total Pixel:	2.13MP	Thermal Imager:	52mm Lens, 640x480, 25Hz, 17μm
Object Tracking:	√	Working Voltage:	4S~6S
Output:	Micro HDMI / IP / SDI	Control Method:	UART / PWM / PPM / S.BUS / TCP
Local Storage:	SD Card Up To 128G	N.W:	1381g
Dimension:	127.7172.9186.7mm

Imager Sensor:	1/2.8" SONY CMOS
Lens:	30x Optical Zoom, F=4.3~129mm
Total Pixel:	2.13MP
Thermal Imager:	52mm Lens, 640x480, 25Hz, 17μm
Object Tracking:	√
Working Voltage:	4S~6S
Output:	Micro HDMI / IP / SDI
Control Method:	UART / PWM / PPM / S.BUS / TCP
Local Storage:	SD Card Up To 128G
N.W:	1381g
Dimension:	127.7172.9186.7mm

30x EO + IR Thermal Triple-Sensor Gimbal Drone Camera 2.13MP

Attribute	Value
Imager sensor	1/2.8" SONY CMOS
Lens	30x optical zoom, f=4.3~129mm
Total pixel	2.13MP
Thermal imager	52mm lens, 640x480, 25Hz, 17μm
Object Tracking	√
Working voltage	4S~6S
Output	micro HDMI / IP / SDI
Control method	UART / PWM / PPM / S.BUS / TCP
Local storage	SD card up to 128G
N.W	1381g
Dimension	127.7172.9186.7mm

Advanced Triple-Sensor Gimbal Camera System

This 30x EO + IR thermal triple-sensor object tracking gimbal camera provides exceptional capabilities for detailed observation, thermal imaging, and precise object tracking. The system integrates high-resolution electro-optical sensors with powerful optical zoom, thermal imaging, and additional specialized sensors for comprehensive surveillance solutions.

30x Optical Zoom Electro-Optical Sensor

Resolution: Ultra-high-definition imaging up to 4K (3840 x 2160 pixels)
Optical Zoom: 30x magnification for detailed observation without quality loss
Function: Captures crisp, clear images and videos for detailed analysis and long-range surveillance

Infrared Thermal Sensor

Resolution: 640 x 480 pixel thermal imaging
Function: Detects infrared radiation for visibility in complete darkness and through obscurants
Benefits: Enables thermal imaging for detecting heat variations in search and rescue or industrial applications

Third Sensor Options

Laser Rangefinder: Provides accurate distance measurement for enhanced targeting
Low-Light Sensor: Improves visibility in twilight or moonlit conditions

3-Axis Gimbal Stabilization

Function: Motorized stabilization in pan, tilt, and roll axes
Benefits: Ensures steady, jitter-free imaging crucial for accurate tracking from moving platforms

Our Services

1. 1 Year Warranty included for confident purchases

2. 14-day return policy for replacements or refunds (contact required before return)

3. Defective items within 3 months replaced at no extra cost

4. After 3 months, defective items can still be returned for replacement (shipping fee applies)

Packing & Delivery

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.

Q3: What is the delivery time?

A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent).

Q4: What is the minimum order quantity?

A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L.C.TT100%.

Q6: Can you reduce the shipping cost?

A6: We always select the most economical and secure shipping option available.

Q7: Return policy.

A7: Contact us within 7 days for replacements. Items must be in original condition with shipping paid by customer.
