Product Details
Brand Name: GS
Model Number: ZIR1352T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: 131.4*132.4*138mm
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
|
Thermal Imager_1:
|
13mm Lens, 640x480, 25Hz, 17μm
|
Thermal Imager_2:
|
52mm Lens, 640x480, 25Hz, 17μm
|
Object Tracking:
|
√
|
Working Voltage:
|
4S~6S
|
Output:
|
Micro HDMI / IP
|
Control Method:
|
UART / PWM / PPM / S.BUS
|
Local Storage:
|
SD Card Up To 128G
|
N.W.:
|
693g
|
Dimension:
|
127.5*127.4*138.9mm
|
|
Thermal Imager_1:
|
13mm Lens, 640x480, 25Hz, 17μm
|
|
Thermal Imager_2:
|
52mm Lens, 640x480, 25Hz, 17μm
|
|
Object Tracking:
|
√
|
|
Working Voltage:
|
4S~6S
|
|
Output:
|
Micro HDMI / IP
|
|
Control Method:
|
UART / PWM / PPM / S.BUS
|
|
Local Storage:
|
SD Card Up To 128G
|
|
N.W.:
|
693g
|
|
Dimension:
|
127.5*127.4*138.9mm
|
| Attribute | Value |
|---|---|
| Thermal imager 1 | 13mm lens, 640x480, 25Hz, 17μm |
| Thermal imager 2 | 52mm lens, 640x480, 25Hz, 17μm |
| Object Tracking | √ |
| Working voltage | 4S~6S |
| Output | micro HDMI / IP |
| Control method | UART / PWM / PPM / S.BUS |
| Local storage | SD card up to 128G |
| N.W. | 693g |
| Dimension | 127.5*127.4*138.9mm |

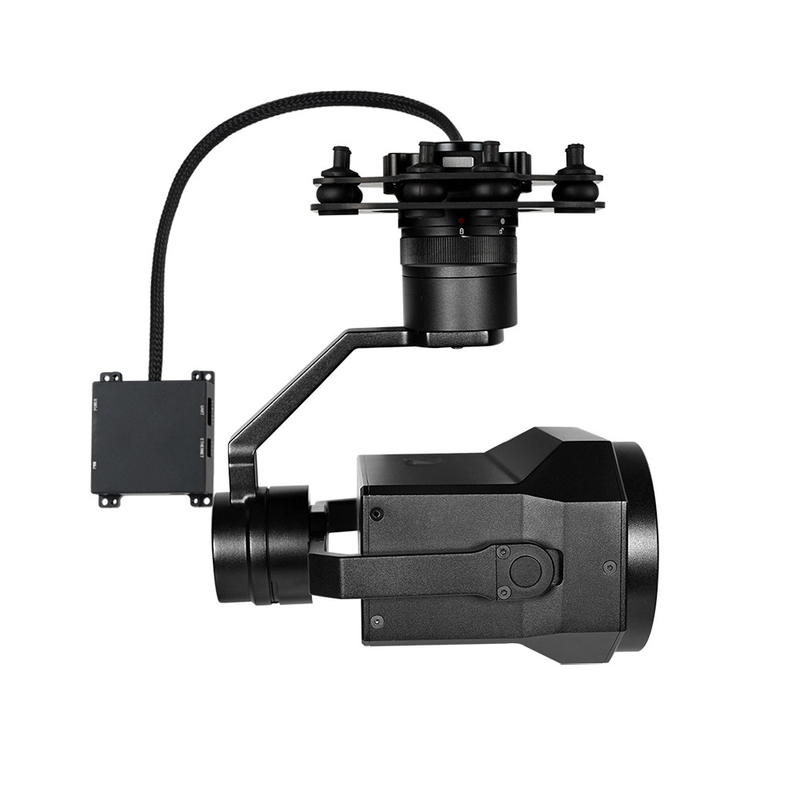

The IR Thermal Dual-Sensor Object Tracking Gimbal Camera combines infrared thermal imaging and visible light dual sensors for high-precision target tracking and all-weather monitoring. Ideal for security surveillance, search and rescue operations, environmental monitoring, and industrial inspections.
Visible light sensors deliver high-definition 4K resolution images, while thermal imaging sensors offer multiple resolution options to suit various application requirements.
