Home > products > Drone Battery Charger > 8 Channels LiPo/LiHV Charger For UAV Drones

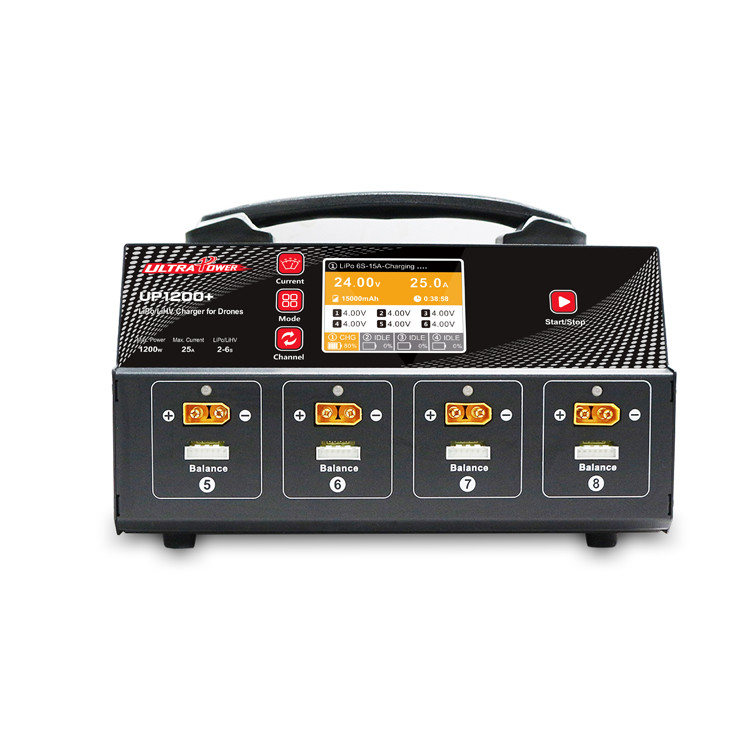

8 Channels LiPo/LiHV Charger For UAV Drones

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: UP1200+

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Get Best Price
Highlight:

Ultra Power RC Balance Charger

,

RC Balance Charger UP240AC

,

Ultra Power lipo battery balance charger

Input Voltage:
AC 110V Or 220V
Charge Power:
1200W(600WX2)
Discharge Power:
80W(40WX2)
Battery Type:
LiPo/LiHV
Charge Current:
5A/10A/15A/20A/25A
Balance Current:
Max.1.5A/cell
Battery Cells Count:
2-6S( Also Can Charge 2S/3S Radio Battery)
Number Of Ports:
8 (4 Ports Per Side)
Charging Mode:
Balance Charging Mode/Storage Mode
Working Temperature:
0-40℃
Storage Temperature:
-20-60°C
Dimensions:
270x190x175mm
Weight:
4.71kg
Input Voltage:
AC 110V Or 220V
Charge Power:
1200W(600WX2)
Discharge Power:
80W(40WX2)
Battery Type:
LiPo/LiHV
Charge Current:
5A/10A/15A/20A/25A
Balance Current:
Max.1.5A/cell
Battery Cells Count:
2-6S( Also Can Charge 2S/3S Radio Battery)
Number Of Ports:
8 (4 Ports Per Side)
Charging Mode:
Balance Charging Mode/Storage Mode
Working Temperature:
0-40℃
Storage Temperature:
-20-60°C
Dimensions:
270x190x175mm
Weight:
4.71kg
8 Channels LiPo/LiHV Charger For UAV Drones



8 Channels LiPo/LiHV Charger For UAV Drones



  • UP1200+ can connect 8 batteries in one time, and it will automatically turn to the next batch packs (2pcs battery packs) oncefuly charged in last batch. Max. power per channel is 600W, and Max. current could reach 25A
  • "One-button charging" function, easy to use Choosing correct charging current: 5A10A/15A/20A/25A, and press the "Start/Stop"button
  • The Max. balance current of UP1200+ is 1.5A/cel. lt will monitor the battery voltage of each celland balance the battery cell voltage to keep a balancing charging, so as to extend the life of battery.

Two working modes, user-friendly


Balance Charging Mode: After choosing a CORRECT battery type, charger will charge two pieces of batteriessimultaneously, and stop charging automatically when full charged.Storage mode: Charger will charge/discharge your batteries to storage voltage simultaneously.With intelligentmanagement system, charger will skip to next batch automatically if last batch is malfunction or broken.
