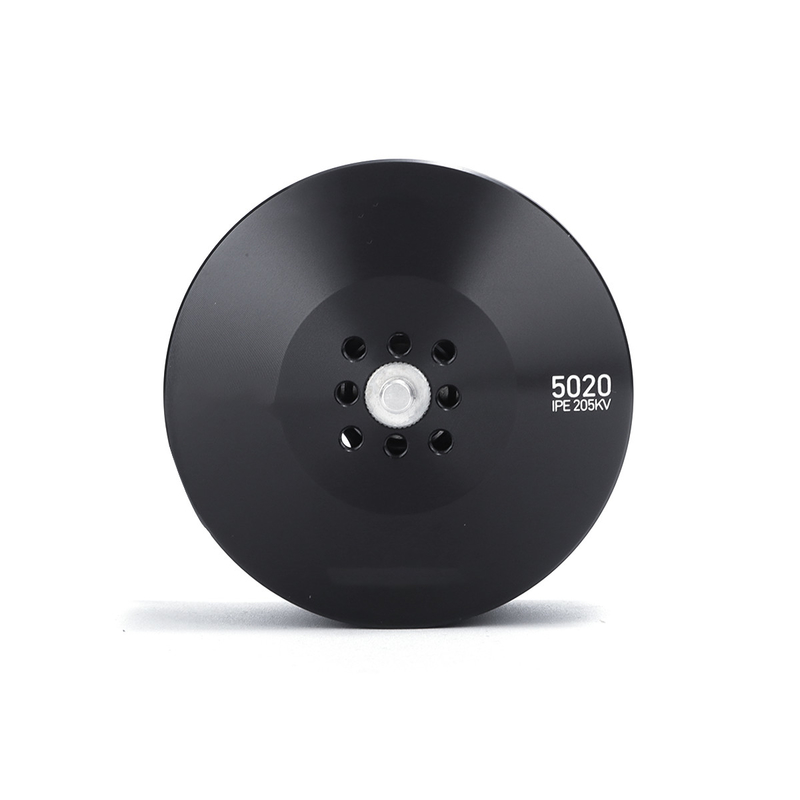

5020 IPE V3 Brushless DC Motor MAD

Name: 5020 IPE V3 Brushless DC Motor MAD
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: 5020 IPE V3 205KV
Price: 42.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: 5020 IPE V3 205KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Long Tethered UAV Power Supply, Aluminum Alloy UAV Power Supply, Aluminum Alloy  Drone  Power Supply


RPMNV:	205 KV	No Load Current:	1.2A/20V
Motor Weight:	290 G	Maximum Current:	40.7 A
Maximum Thrust:	8 Kg	Recommended EsC:	MAD AMPX 60A (5-14S)
Nominal Voltage:	12S Lipo Battery	Product Boxed Weight:	466g(110 X 110 X50 Mm)
Maximum Power:	1905W	Recommended Propellers:	16x8.0，17x10.0，18x8.0
Single Rotor Take-off Weight:	2kg ~ 3kg

RPMNV:	205 KV
No Load Current:	1.2A/20V
Motor Weight:	290 G
Maximum Current:	40.7 A
Maximum Thrust:	8 Kg
Recommended EsC:	MAD AMPX 60A (5-14S)
Nominal Voltage:	12S Lipo Battery
Product Boxed Weight:	466g(110 X 110 X50 Mm)
Maximum Power:	1905W
Recommended Propellers:	16x8.0，17x10.0，18x8.0
Single Rotor Take-off Weight:	2kg ~ 3kg

5020 IPE V3 Brushless DC Motor MAD

Technical Specifications

Attribute	Value
RPMNV	205 KV
No Load Current	1.2A/20V
Motor Weight	290 g
Maximum current	40.7 A
Maximum thrust	8 kg
Recommended ESC	MAD AMPX 60A (5-14S)
Nominal Voltage	12S lipo battery
Product Boxed Weight	466g (110 x 110 x 50 mm)
Maximum Power	1905W
Recommended Propellers	16x8.0, 17x10.0, 18x8.0
Single rotor take-off weight	2kg ~ 3kg

Product Overview

The 5020 IPE V3 Brushless DC Motor MAD with 205KV rating is the preferred power solution for VTOL aircraft in the 2.5-3.5kg range. This high-performance motor is also ideal for quadcopters, hexacopters, and multirotor drones with similar take-off weights, making it perfect for long-range inspection, mapping, and surveying applications.

Warranty & Services

1 Year Warranty - Buy with confidence

14-day return policy for unsatisfied customers (contact required before return)

3-month replacement warranty for defective items

Post-warranty support available (shipping fees apply)

Frequently Asked Questions

Do you support OEM/ODM?

Yes. We can print your logo on the product.

About samples

Samples are typically ready within 7 days (10-20 days for OEM/ODM orders). Sample fee and shipping will be charged.

What is the delivery time?

Regular orders ship within 15 days; OEM/ODM orders within 25-45 days (quantity dependent). We notify customers of any delays.

What is the minimum order quantity?

No MOQ for wholesale (1 piece accepted), including OEM/ODM.

What are your payment terms?

L.C. or TT 100% payment.

Can you reduce the shipping cost?

We always select the most economical and secure shipping option. Customers may arrange their own shipping if preferred.

Return policy

Replacements must be requested within 7 days of receipt. Items must be in original condition, with customer responsible for return shipping.
