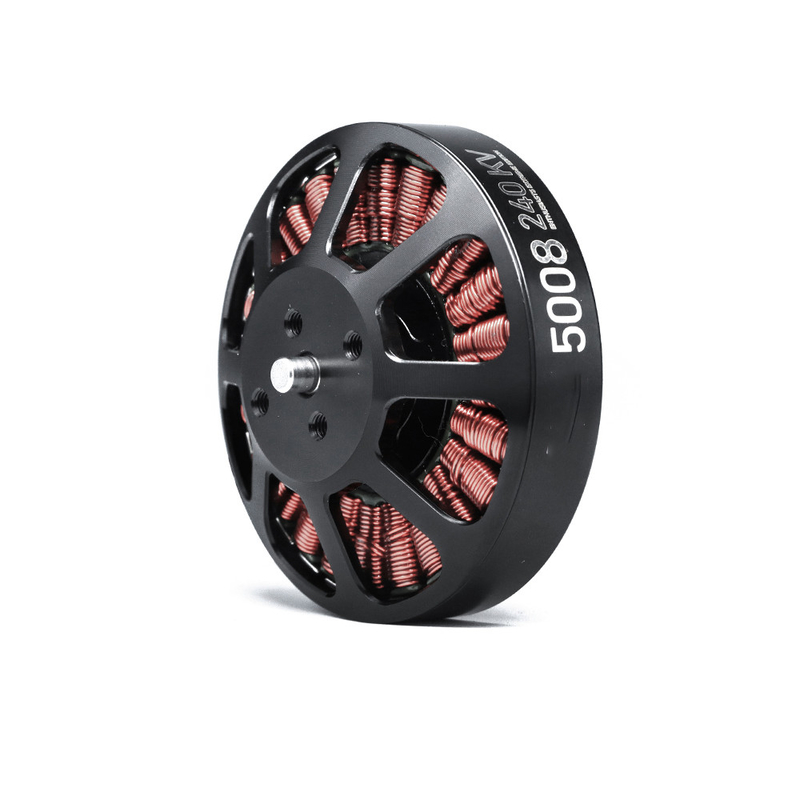

5008 EEE V2.0 Drone Motor 170KV 240KV 300KV 340KV 400KV

Name: 5008 EEE V2.0 Drone Motor 170KV 240KV 300KV 340KV 400KV
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: 5008 EEE 170KV 240KV 300KV 340KV 400KV
Price: 42.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: 5008 EEE 170KV 240KV 300KV 340KV 400KV

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    high efficiency Tethered Power, high efficiency  tethered drone systems, Optional Module  Tethered Power


Motor Model:	MAD 5008 EEE V2.0	Stator:	Anticorrosive
Motor Size:	D:56 X30.7 Mm	Propeller Mounting Holes:	D:12 M3x2, D:18 M3x2
Bearing:	EZ0 685ZZ1/695ZZ1	Number Of Pole Pairs:	14
Varnished Wire Degree:	180°C	Cable Length:	150 Mm 16# Awg(Black) Silicone
Motor Mounting Holes:	D:25 M3x4. D:30 M3x4	Disruptive Test:	500 V

Motor Model:	MAD 5008 EEE V2.0
Stator:	Anticorrosive
Motor Size:	D:56 X30.7 Mm
Propeller Mounting Holes:	D:12 M3x2, D:18 M3x2
Bearing:	EZ0 685ZZ1/695ZZ1
Number Of Pole Pairs:	14
Varnished Wire Degree:	180°C
Cable Length:	150 Mm 16# Awg(Black) Silicone
Motor Mounting Holes:	D:25 M3x4. D:30 M3x4
Disruptive Test:	500 V

5008 EEE V2.0 Drone Motor 170KV 240KV 300KV 340KV 400KV

Product Specifications

Attribute	Value
Motor Model	MAD 5008 EEE V2.0
Stator	Anticorrosive
Motor Size	D:56 x30.7 mm
Propeller Mounting Holes	D:12 M3x2, D:18 M3x2
Bearing	EZ0 685ZZ1/695ZZ1
Number of pole pairs	14
Varnished wire Degree	180°C
Cable Length	150 mm 16# Awg(Black) silicone
Motor Mounting Holes	D:25 M3x4. D:30 M3x4
Disruptive test	500 V

Product Description

The 5008 EEE V2.0 Drone Motor (available in 170KV, 240KV, 300KV, 340KV, and 400KV variants) was first designed and developed by MAD EU in 2015. This highly efficient motor is ideal for 18-20 inch propellers and is the perfect choice for multirotor applications requiring 1-2kg/rotor. It's widely used in long-range inspection drones, mapping drones, surveying drones, quadcopters, hexacopters, and other multirotor configurations.

Key Considerations When Choosing a Motor

Drone Size and Weight: Heavier drones benefit from lower KV motors for better thrust and stability, while lighter drones can use higher KV motors for speed.
Propeller Size: Larger propellers are better matched with lower KV motors, while smaller propellers work well with higher KV motors.
Battery and ESC Compatibility: Ensure the motor's KV rating is compatible with your battery and ESC to achieve optimal performance and efficiency.
Flight Requirements: Determine if your drone requires more speed and agility (higher KV) or more thrust and stability (lower KV) to meet your specific needs.

Our Services

We provide 1 Year Warranty. Buy with confidence.
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact us before you return it.
If item is defective within 3 months, we will send you a replacement without extra charge, or offer refund after we receive the defective item.
If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item, but you will need to pay the return shipping fee.

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: When calculating shipping costs, we always choose the most economical and secure option. While we have partnerships with shipping companies, we cannot further reduce costs as these are set by the carriers.

Q7: Return policy.

A7: If you need to replace an item, you must contact us within 7 days of receipt. Returned items must be in original condition, and you will be responsible for return shipping costs.
