WF-1000S60-24K w Stabilizacja napięcia tethered UAV systems
Product Specifications
| Attribute |
Value |
| External Dimension |
370*223*127mm |
| Input voltage |
800-1000V |
| Output voltage |
60V/480A |
| Input terminal |
XT60 |
| Output terminal |
M8 |
| Weight |
9500 grams |
Product Overview
800-1000V wide voltage input | 60V/480A regulated output | 24KW continuous power
The WF-1000S60-24K is a high-power regulated tethered power supply system designed to military-grade standards. It converts 800-1000V high-voltage DC input into precise and stable 60V/480A output, providing continuous and reliable power support for industrial drones and special equipment.
Key Features
- DC-DC isolated power converter: Isolates and converts the input 1000V DC power to 60V DC power, with a rated output power of 24KW
- 24KW continuous power, meeting the needs of heavy-duty drones for long-term operation
- Providing continuous power for long-endurance drones used in police surveillance, border patrol, emergency communications, and other applications
- High power density, small size, and light weight
Technical Characteristics
1.1 Flame retardant requirements
- The flame retardant rating of the PCB used in the system should meet the V-0 requirements specified in GB4943.1-2011
- The flame retardant rating of insulated cables should meet the requirements specified in GB/T 18380.12-2008
- The flame retardant rating of other insulating materials should meet the V-1 requirements specified in GB4943.1-2011
1.2 System noise
System noise should not exceed 60 dB(A).
1.3 System reliability
MTBF > 100K hour
1.4 Protection rating
The protection rating should meet IP65 requirements. No water should accumulate on the top of the power supply enclosure.
1.5 Three-proof (moisture-proof, mildew-proof, salt spray-proof)
The printed circuit boards, connectors, and other circuits inside the product should be moisture-proof, mildew-proof, and salt spray-proof. The salt spray resistance should meet the requirements of Table 9 in GB/T 4797.6, so that the product can operate normally in outdoor humid and salt spray environments.

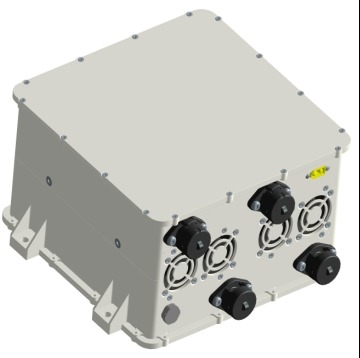

Product Image
