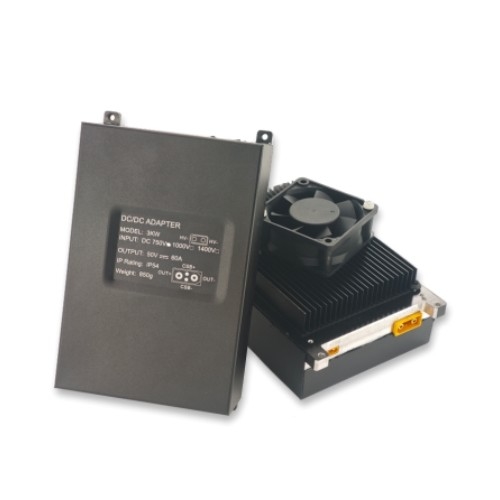

Tethered Drone Power Supply for Communication Relays 3000W

Name: Tethered Drone Power Supply for Communication Relays 3000W
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: WF-750S50-3K
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: WF-750S50-3K

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

External Dimension:	17410390mm	Input Voltage:	900-1000V
Output Voltage:	50V/60A	Input Terminal:	XT30PW
Output Terminal::	XT90PW	Weight:	850g

External Dimension:	17410390mm
Input Voltage:	900-1000V
Output Voltage:	50V/60A
Input Terminal:	XT30PW
Output Terminal::	XT90PW
Weight:	850g

Tethered Drone Power Supply for Communication Relays 3000W

Product Specifications

Attribute	Value
External Dimension	17410390mm
Input voltage	900-1000V
Output voltage	50V/60A
Input terminal	XT30PW
Output terminal	XT90PW
Weight	850g

Product Description

This Tethered Drone Onboard Power Supply is designed for long-endurance UAVs, delivering high-efficiency, stable, and lightweight power solutions. Featuring a high-density power module design, it supports 700-750V high-voltage input and provides 50V/60A high-current output, ensuring continuous power delivery in tethered mode. Ideal for surveillance, emergency communications, mapping, and inspection applications.

Key Features

High Efficiency: Advanced switching topology with ≥92% conversion efficiency, minimizing energy loss.
Wide Input Range: Compatible with 700-750V DC, optimized for long-distance tethered power transmission.
Stable Output: Delivers 50V/60A continuous current, supporting peak loads for stable UAV operation.
Lightweight Design: Only 850g, enhancing flight endurance and maneuverability.
Over-voltage/over-current/short-circuit protection
Temperature monitoring and automatic load shedding
Shockproof and dustproof (compliant with industrial drone standards)

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you, you can always make your own choice.

Q7: Return policy.

A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
