Tethered Drone Power Management System high power density and small size

Name: Tethered Drone Power Management System high power density and small size
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: WF-1000S50-12K
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: WF-1000S50-12K

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

External Dimension:	239204139mm	Input Voltage:	900-1000V
Output Voltage:	50V/240A	Input Terminal:	XT60
Output Terminal::	XT150	Weight:	5700grams

External Dimension:	239204139mm
Input Voltage:	900-1000V
Output Voltage:	50V/240A
Input Terminal:	XT60
Output Terminal::	XT150
Weight:	5700grams

Tethered Drone Power Management System high power density and small size

Tethered Drone Power Management System

High power density and small size

Product Specifications

Attribute	Value
External Dimension	239204139mm
Input voltage	900-1000V
Output voltage	50V/240A
Input terminal	XT60
Output terminal	XT150
Weight	5700grams

Industrial-Grade Power Solution for Demanding UAV Operations

Engineered for professional drone systems requiring extreme endurance, this 12KW tethered power module converts high-voltage 900-1000V DC input into a stable 50V/240A output, delivering unmatched power density for heavy-lift and long-duration missions.

Key Specifications

Ultra-High Power Output	12KW continuous power for energy-intensive drones
Wide Input Voltage Range	Tolerates unstable power sources (generators/solar)
Military-Grade Durability	Vibration/shock resistant (MIL-STD-810G tested)
Scalable Design	Parallel operation supported for 24KW+ systems

Application Scenarios

This high-voltage DC power supply is a specially customized power supply with the advantages of small size, light weight, high efficiency, and built-in fan cooling. It has a maximum operating efficiency of >97%. The power supply module adopts an aluminum shell design, which is lightweight and attractive, with a waterproof design. It can be used as a substitute for imported high-voltage DC module power supplies.

Product Features

DC-DC isolated power converter: Isolates and converts the input 1000V DC power to 50V DC power, with a rated output power of 12KW.
High power density, small size, and light weight.
Designed to meet power supply reliability requirements: input overvoltage/undervoltage protection, output overvoltage protection, current limiting, short circuit, and overtemperature protection functions.

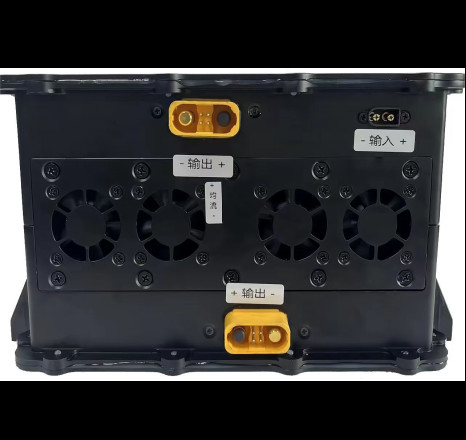

Product Image

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.

Q7: Return policy.

A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
