Product Details
Place of Origin: Guangdong, China
Brand Name: GS
Model Number: HV30
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 6-8
Payment Terms: T/T
Supply Ability: 100
Expansion Size: |
1710*1453*700mm |
Machine Weight: |
26.8KG(without Battery) |
Medicine Box Volume:: |
30L |
Smart Battery: |
14S 3000mAh |
Flight Time: |
15 Minutes Empty And 8 Minutes Full |
Effective Control Distanc: |
3km(no Blocking Interference) |
Effective Spray Width: |
6-10m |
Working Environment: |
-10°C--40°C |
Folding Size: |
603*1120*700mm |
Diagonal Wheelbase: |
2000mm |
Box Volume: |
50L |
Operating Voltage: |
58.8V(14S) |
Flight Speed: |
5-10m/s |
Spraying System: |
Centrifugal Nozzle *2 |
Take-off Weight: |
68KG |
Storage Form: |
The Arm Folds Sideways |
Expansion Size: |
1710*1453*700mm |
Machine Weight: |
26.8KG(without Battery) |
Medicine Box Volume:: |
30L |
Smart Battery: |
14S 3000mAh |
Flight Time: |
15 Minutes Empty And 8 Minutes Full |
Effective Control Distanc: |
3km(no Blocking Interference) |
Effective Spray Width: |
6-10m |
Working Environment: |
-10°C--40°C |
Folding Size: |
603*1120*700mm |
Diagonal Wheelbase: |
2000mm |
Box Volume: |
50L |
Operating Voltage: |
58.8V(14S) |
Flight Speed: |
5-10m/s |
Spraying System: |
Centrifugal Nozzle *2 |
Take-off Weight: |
68KG |
Storage Form: |
The Arm Folds Sideways |

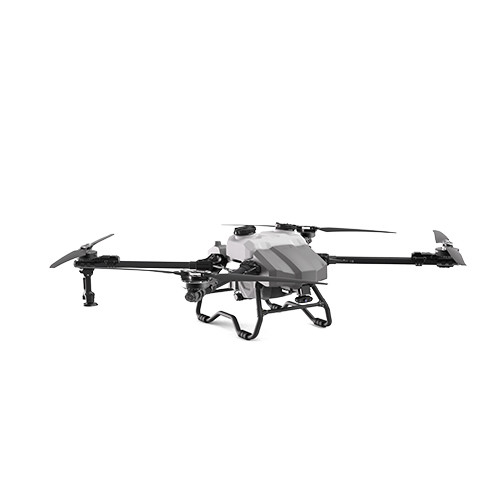

The HV-AG 30L Agricultural Spraying Drone is a high-performance UAV designed for large-scale farmland operations. With a modular structure for easy maintenance, it features an intelligent flight control system and a precision spraying unit. This drone delivers enhanced efficiency and chemical utilization, making it ideal for spraying crops, orchards, and economic plants.
Equipped with a dual-pump system and intelligent flow control, the HV-AG supports a spraying rate of 6–8 liters per minute with a spray width of 2–4 meters. Its 30L high-capacity tank reduces refill times and increases work efficiency, making it perfect for large-area crop protection.
This drone is powered by a multi-redundant flight control system, offering autonomous flight, AB point planning, terrain following, and breakpoint resume spraying. Integrated RTK positioning ensures centimeter-level accuracy, enabling stable and intelligent operation even in complex environments.
The HV series is equipped with advanced multi-nozzle spraying technology to ensure uniform and precise application of pesticides, herbicides and fertilizers.The adjustable flow rate can be tailored to the needs and chemical type of a particular crop, optimising treatment results.
Q: Is the 30L tank replaceable or fixed?
A: The 30-liter tank is modular and detachable, allowing for quick cleaning or replacement if needed.
Q: Is the drone easy to transport?
A: Yes. With foldable arms, the drone can be quickly packed and deployed in minutes, making it easy to transport.
Q:What types of chemicals are compatible with the drone?
A: The drone is compatible with most liquid pesticides, herbicides, and fertilizers. Avoid using highly corrosive or overly viscous liquids without proper dilution and filtering.
