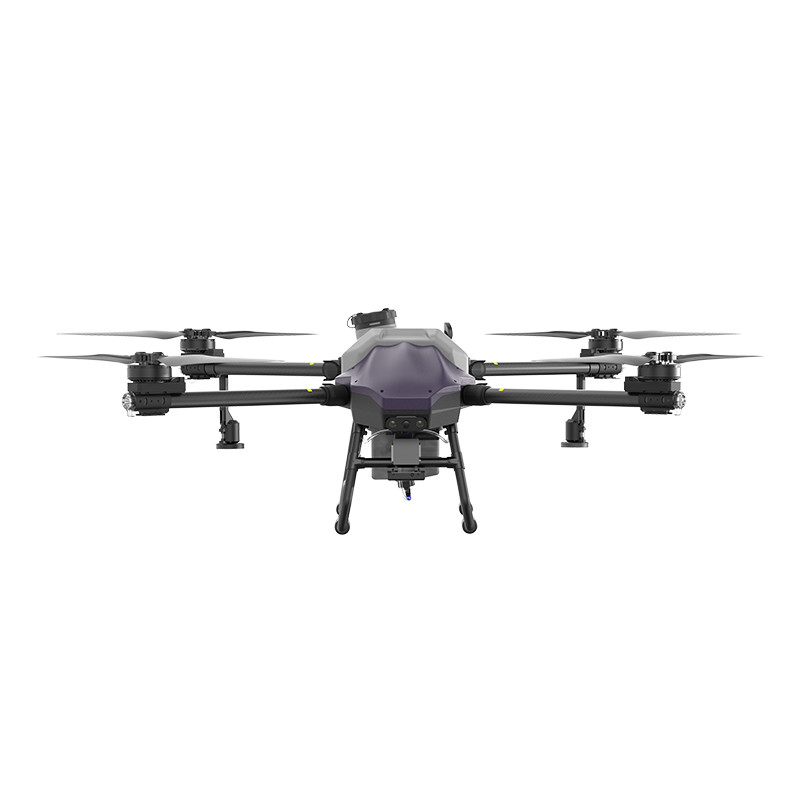

NV16 Agricultural Drone Crop Spraying Drone Can Hold 16L

Name: NV16 Agricultural Drone Crop Spraying Drone Can Hold 16L
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: NV16
Price: 7,521.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: NV16

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                16L Agricultural Drone, crop spraying Agricultural Drone, NV16 Agricultural Drone


Developed Size:	11401300575mm	Folding Size:	1010610575mm
Weight:	16KG	Flight Speed:	3-8M/s M /s
Maximum Takeoff Weight:	38KG	Maximum Pump Pressure:	0.8 MPa
Flight Time:	No Load :20-25Min/ Full Load :7-10Min	Battery:	14S 18000mah
Charge Cycle:	300-500/ Time	Materials:	Carbon Fiber/Nylon Fiber/aluminum Alloy
Diagonal Wheelbase:	1480mm	Operating Voltage:	58.8V (14 S)
Load:	16L	Spray Width:	3-5M/s M /s
Spray System:	Pressure Spraying	Spray Flow:	4-8L/Min
Operational Efficiency:	8-10(min)Acres	Charging Time:	15-30min/ Min
Daily Efficiency:	300-600/ Mu	Packing Box:	1060660625mm

Developed Size:	11401300575mm
Folding Size:	1010610575mm
Weight:	16KG
Flight Speed:	3-8M/s M /s
Maximum Takeoff Weight:	38KG
Maximum Pump Pressure:	0.8 MPa
Flight Time:	No Load :20-25Min/ Full Load :7-10Min
Battery:	14S 18000mah
Charge Cycle:	300-500/ Time
Materials:	Carbon Fiber/Nylon Fiber/aluminum Alloy
Diagonal Wheelbase:	1480mm
Operating Voltage:	58.8V (14 S)
Load:	16L
Spray Width:	3-5M/s M /s
Spray System:	Pressure Spraying
Spray Flow:	4-8L/Min
Operational Efficiency:	8-10(min)Acres
Charging Time:	15-30min/ Min
Daily Efficiency:	300-600/ Mu
Packing Box:	1060660625mm

NV16 Agricultural Drone Crop Spraying Drone Can Hold 16L

Product Specifications

Attribute	Value
Developed size	11401300575mm
Folding size	1010610575mm
Weight	16KG
Flight speed	3-8M/s
Maximum takeoff weight	38KG
Maximum pump pressure	0.8 mPa
Flight time	No load: 20-25Min/Full load: 7-10Min
Battery	14S 18000mah
Charge cycle	300-500 times
Materials	Carbon fiber/Nylon fiber/Aluminum alloy
Diagonal wheelbase	1480mm
Operating voltage	58.8V (14 s)
Load capacity	16L
Spray width	3-5M/s
Spray system	Pressure spraying
Spray flow	4-8L/Min
Operational efficiency	8-10 acres/min
Charging time	15-30min
Daily efficiency	300-600 mu
Packing box	1060660625mm
