Home > products > Agricultural Drone > NV Series Precision Agriculture Crop Monitoring Spraying Drones

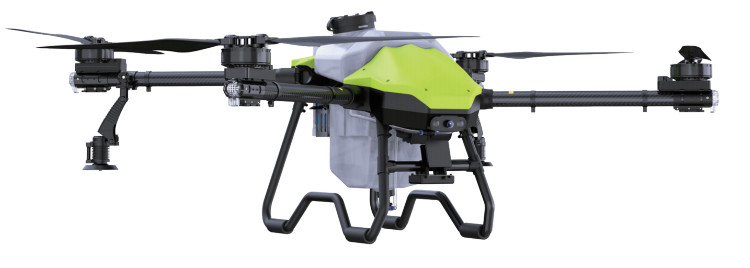

NV Series Precision Agriculture Crop Monitoring Spraying Drones

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: NV20

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price
Highlight:

Precision Agriculture Crop Monitoring Spraying Drones

,

NV series Precision Agriculture Spraying Drones

,

NV series Crop Monitoring Spraying Drones

Unfold Size:
1140*1300*575mm
Folding Size:
1010*610*575mm
Diagonal Wheelbase:
1480mm
Weight:
18KG
Takeoff Weight:
44.5KG
Volume Of Medicine Cabinet:
20L
Spraying Flow:
8L/Min
Effective Spray Width:
5-8M
Flight Speed:
5-10M/S
Operation Power:
58.8V(14S)
Battery:
14S 22000mah
Operating Temperature:
-10 ℃-- 40℃
Storage Mode:
The Arm Folds Sideways
Spraying System:
Centrifugal Nozzle
Flight Time:
Empty Tank(20-25Min)Full Tank( 7-10Min )
Spreader Box Volume:
33L(Limited 20kg )
Unfold Size:
1140*1300*575mm
Folding Size:
1010*610*575mm
Diagonal Wheelbase:
1480mm
Weight:
18KG
Takeoff Weight:
44.5KG
Volume Of Medicine Cabinet:
20L
Spraying Flow:
8L/Min
Effective Spray Width:
5-8M
Flight Speed:
5-10M/S
Operation Power:
58.8V(14S)
Battery:
14S 22000mah
Operating Temperature:
-10 ℃-- 40℃
Storage Mode:
The Arm Folds Sideways
Spraying System:
Centrifugal Nozzle
Flight Time:
Empty Tank(20-25Min)Full Tank( 7-10Min )
Spreader Box Volume:
33L(Limited 20kg )
NV Series Precision Agriculture Crop Monitoring Spraying Drones



NV series Precision Agriculture Crop Monitoring Spraying Drones



  • The NV series agricultural UAV system solutions are available in 16KG and 20KGload models. New intelligent control system upgrade, make the operation moresmooth, lightweight, portable, single person can easily complete the job;The water-cooled centrifugal nozzle comprises the spray systemThe paving system can be replaced quickly
  • The NV series has a tilted and folded body design with an integrated fibre-plastic frame embedded with PCBS for durability and easy wiring. The drone frame has a sealed upper and lower cover that effectively prevents the intrusion of dust and water
  • The application of NV series drones in precision agriculture not only improves the efficiency and quality of agricultural production, but also helps achieve sustainable development of agriculture.



NV Series Precision Agriculture Crop Monitoring Spraying Drones 0NV Series Precision Agriculture Crop Monitoring Spraying Drones 1



Our Services



1. We provide 1 Year Warranty. Buy with confidence.
2. If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
3. If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
4. If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.



NV Series Precision Agriculture Crop Monitoring Spraying Drones 2



FAQ



Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.
Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: What are your payment terms?
A5: L/C.TT100%.
Q6: Can you reduce the shipping cost?
A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.
Q7: Return policy.
A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
