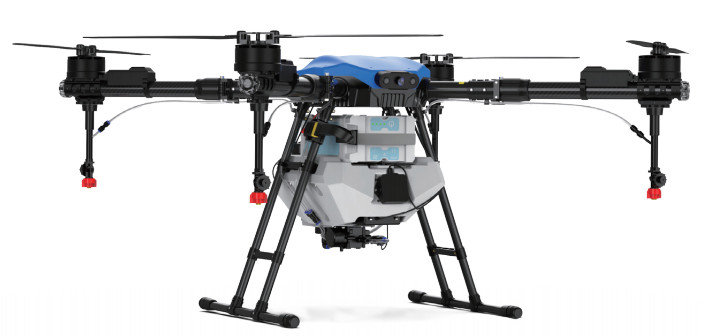

EV4 Axis Series Agricultural Drone EV422 Drone

Product Details

Place of Origin: Guangdong, China

Brand Name: GS

Model Number: EV422

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price
Highlight:

Agricultural drone EV422 series

,

EV422 series Agricultural drone

,

Agricultural drone EV422

Unfold Size:
1000*1000*600mm
Folding Size:
650*650*600mm
Diagonal Wheelbase:
1400mm
Weight:
13.5KG
Takeoff Weight:
43KG
Volume Of Medicine Cabinet:
22L
Spraying Flow:
1.5-4 L/Min
Effective Spray Width:
3-5m
Flight Speed:
3M/S
Operation Power:
58.8V(14S)
Battery:
14S 18000mah
Operating Temperature:
-10 ℃-- 40℃
Storage Mode:
The Arm Folds Sideways
Spraying System:
Pressure Nozzle
Flight Time:
Empty Tank(20-25Min)Full Tank(7-10Min )
Unfold Size:
1000*1000*600mm
Folding Size:
650*650*600mm
Diagonal Wheelbase:
1400mm
Weight:
13.5KG
Takeoff Weight:
43KG
Volume Of Medicine Cabinet:
22L
Spraying Flow:
1.5-4 L/Min
Effective Spray Width:
3-5m
Flight Speed:
3M/S
Operation Power:
58.8V(14S)
Battery:
14S 18000mah
Operating Temperature:
-10 ℃-- 40℃
Storage Mode:
The Arm Folds Sideways
Spraying System:
Pressure Nozzle
Flight Time:
Empty Tank(20-25Min)Full Tank(7-10Min )
EV4 Axis Series Agricultural Drone EV422 Drone



EV4 axis series Agricultural drone EV422 drone



Ev4-axis series agricultural UAV system solutions, available in 10KG, 16KG22KG load models. New intelligent control system upgrade, classic design.the first recommended entry Water cooled pressure sprinkler





Design & Structure:

  • Four-axis (quad-rotor) design: Provides excellent flight stability and control, even in windy or uneven terrain.
  • Heavy-duty construction: Built with durable materials that are resistant to dust, chemicals, and weather conditions, suitable for use in tough agricultural environments.
  • Folding arms: Ensures easy transportation and storage, even for a drone with a large frame.

Increased Payload Capacity:

  • 22-liter tank: The EV422 has a larger capacity for liquid payloads such as pesticides, herbicides, fertilizers, or water, making it ideal for covering larger areas with fewer refills.
  • High-efficiency Spraying System: Equipped with multi-directional nozzles, ensuring precise and uniform application of chemicals over crops.
  • Spray Efficiency: Can cover between 15-20 hectares per hour, depending on the terrain and crop density, significantly enhancing productivity in large fields.



EV4 Axis Series Agricultural Drone EV422 Drone 0



Our Services



1. We provide 1 Year Warranty. Buy with confidence.
2. If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
3. If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
4. If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.



EV4 Axis Series Agricultural Drone EV422 Drone 1



FAQ



Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.
Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: What are your payment terms?
A5: L/C.TT100%.
Q6: Can you reduce the shipping cost?
A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.
Q7: Return policy.
A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
