Monocular Camera 45x Hybrid Zoom Dual Output Small Gimal

Name: Monocular Camera 45x Hybrid Zoom Dual Output Small Gimal
Brand: Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
SKU: DHU05S35
Price: 1,030.00 USD
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GS

Model Number: DHU05S35

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 6-8

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                dual output Monocular Camera, small gimal Monocular Camera, 45x hybrid zoom Monocular Camera


Voltage:	DC 12V-26.2V③	Power Consumption:	Power Consumption
Roll Angle Action Range:	-45 °～ +45°	Pitch Angle Action Range:	-45°～ +120°
Yaw Angle Action Range:	-145°～+145°	Angle Jitter In Pitch And Roll Direction:	±0.02°
Horizontal Angle Jitter:	±0.03°	±0.03°:	1080P 30fps
HDMI Video:	Micro-D HDMI 1080P 60fps	Min Tracking Target Size:	16×16 Pixels
Max Tracking Target Size:	256×256 Pixels

Voltage:	DC 12V-26.2V③
Power Consumption:	Power Consumption
Roll Angle Action Range:	-45 °～ +45°
Pitch Angle Action Range:	-45°～ +120°
Yaw Angle Action Range:	-145°～+145°
Angle Jitter In Pitch And Roll Direction:	±0.02°
Horizontal Angle Jitter:	±0.03°
±0.03°:	1080P 30fps
HDMI Video:	Micro-D HDMI 1080P 60fps
Min Tracking Target Size:	16×16 Pixels
Max Tracking Target Size:	256×256 Pixels

Monocular Camera 45x Hybrid Zoom Dual Output Small Gimal

Monocular Camera 45x Hybrid Zoom Dual Output Small Gimbal

Product Specifications

Attribute	Value
Voltage	DC 12V-26.2V
Power Consumption	Power Consumption
Roll angle action range	-45°～ +45°
Pitch angle action range	-45°～ +120°
Yaw angle action range	-145°～+145°
Angle jitter in pitch and roll direction	±0.02°
Horizontal angle jitter	±0.03°
±0.03°	1080P 30fps
HDMI Video	Micro-D HDMI 1080P 60fps
Min tracking target size	16×16 pixels
Max tracking target size	256×256 pixels

Product Description

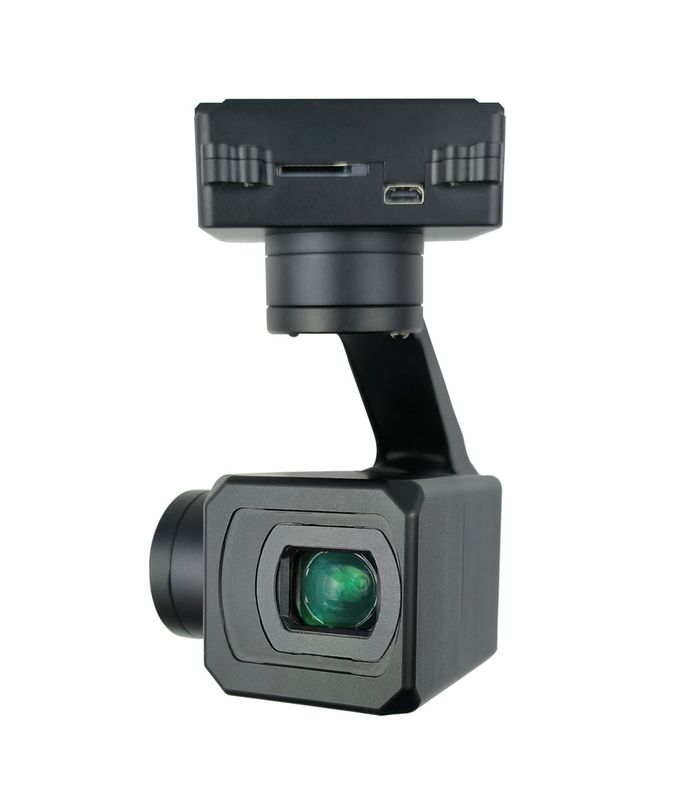

The DHU05S35 is a single zoom gimbal that integrates 45x hybrid zoom camera and high-precision professional 3-axis stabilization PTZ. It features IP and HDMI dual output, IP control, and adopts high-precision encoder FOC control scheme PTZ.

Key characteristics include high stability, small size, light weight, and low power consumption. The visible light camera uses a sensor with an effective pixel size of 4 million. Serial ports and S.BUS and network can control the camera and PTZ, supporting local TF dual channel recording and photography.

Functional Features

High speed focus tracking
AI Target Detection and Tracking
RTSP stream output
Provide integrated ground App
Lightweight 210g

Company Image

Frequently Asked Questions

Q1: Do you support OEM/ODM?

A1: Yes. We can print your logo on the product.

Q2: About samples.

A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.

Q3: What is the delivery time?

A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.

Q4: What is the minimum order quantity?

A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.

Q5: What are your payment terms?

A5: L/C.TT100%.

Q6: Can you reduce the shipping cost?

A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you, you can always make your own choice.

Q7: Return policy.

A7: If you want to replace the received item, you must contact us within 7 days after receiving the item. Returned items should be in their original condition and you should pay for additional shipping.
