10x Optical Zoom+7mm256 Thermal UAV Camera UAV IR Camera Dynamic 4w

Universal Joint 10x optical zoom+7mm256 thermal imaging UAV

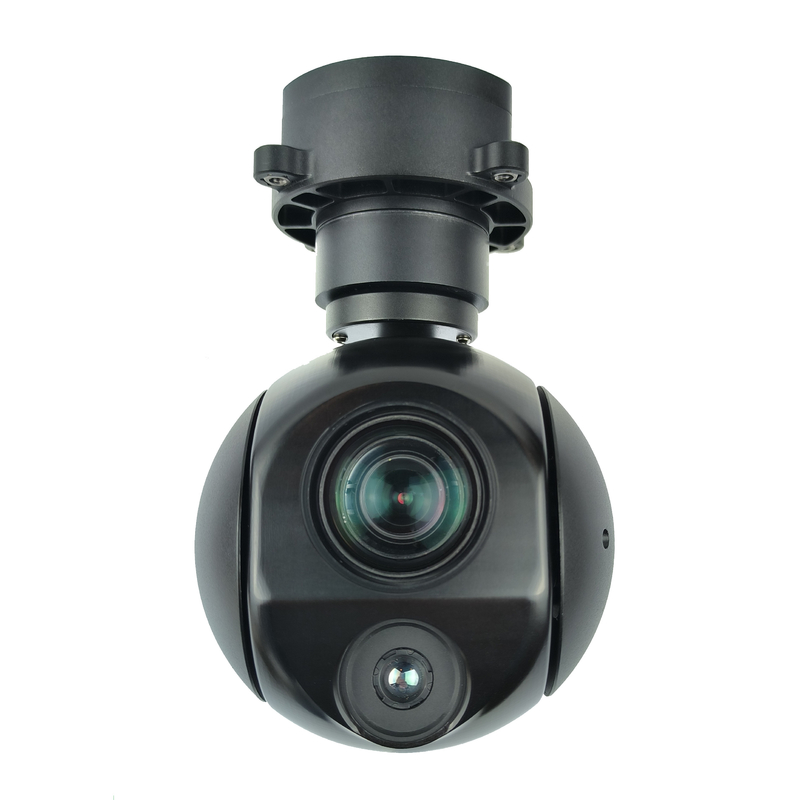

KHY10G207 This product is a professional dual sensor integrated system integrating 10x optical zoom camera, 256 * 192 thermal imaging module, and a high-precision 3-axis stabilized PTZ. It adopts IP/HDMI output, IP control. It adopted high-precision encoder FOC control scheme for PTZ, which has the characterized of high stability, small size, light weight, and low power consumption; The EO camera uses a wide dynamic sensor with 2 mega effective pixels; The thermal imaging adopts 256x192 resolution vanadium oxide detector. The system supports network RTSP output, picture in picture mode switching, multiple pseudo color display, and global temperature measurement. Both the serial port and the network can control the camera and the PTZ, and support the local TF card two-way video recording and photographing. The thermal imaging lens of this model is 7mm focal length.

• Check whether the hanging structure of the dual optical gimbal is normal and whether there is obvious deformation or looseness
• Check whether there is dirt on the lens. If there is dirt on the lens, wipe the lens with lens cloth
• After installing the gimbal, check whether the system mechanical installation is normal
• Check whether the electrical connection of the system is normal
• Ground check whether the imaging and function of the gimbal are normal

During the use of the product, the power supply voltage shall not exceed the allowable range, and the product shall not be used in the environment beyond the normal working load.

After the system is powered on normally, the control operation is carried out with the mouse or touch screen through the UAV ground station software.

Record the problems encountered during use and save the corresponding image data.

After the product is used, disconnect the system power first, separate the pod from the fuselage in a static-free environment, and store it in a dry and ventilated environment. It should be placed in the box if it is not used for a long time.

• We provide 1 Year Warranty. Buy with confidence.
• If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
• If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
• If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.
